PH Combined Electrode with Plastic Body

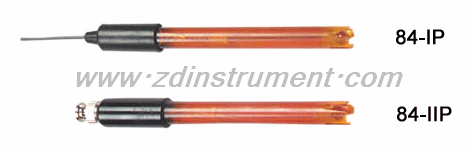

Model
84-IP
84-IIP
Measuring Range
0 - 14 pH
Temperature Range
0 - 60 C
Zero point value
7 +/- 1 pH
Junction
Ceramic
Reference Cell
Ag/Agcl, KCL gel
Size
dia.10 x length 120 mm
Plug
BNC + 1 m cable
BNC
Note: 84-IP can be generally used in lab. 84-IIP is the accessory electrode for pH meter model P-IA and PX-IA. It has a special direct BNC plug to be connected to pH meter.

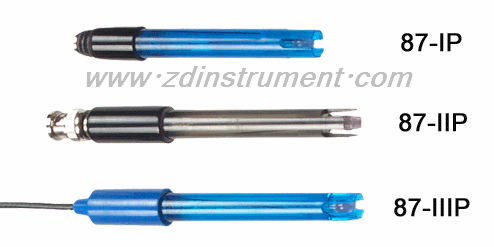

Model
87-IP
87-IIP
87-IIIP
Measuring Range
0 - 14 pH
Temperature Range
0 - 60 C
Zero point value
7 +/- 1 pH
Junction
Ceramic
Reference Cell
Ag/Agcl, KCL gel
Size
dia.12 x length 85 mm
dia.12 x length120 mm
dia.12 x length 90mm
Plug
Special direct plug
BNC
BNC + 1 m cable
Note: These three models are acceossories for Pocket pH meter PH serie.
  • 87-IP is for PH-I. It has a special direct plug for connection. It is smaller in size so that it can be temperarily stored in the body of PH-I
  • 87-IIP is for PH-II, can also be generally used in lab.
  • 87-IIIP is for PH-III, can also be generally used in lab.

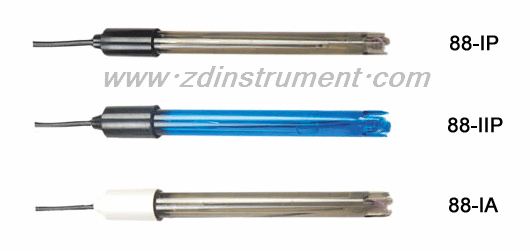

Model
88-IP
88-IIP
88-IA
Measuring Range
0 - 14 pH
Temperature Range
0 - 60 C
Zero point value
7 +/- 1 pH
Junction
Ceramic
Reference Cell
Ag/Agcl, KCL gel
Ag/Agcl, KCL gel (tine vesicle)
Size
dia.12 x length 160 mm
Plug
BNC + 1 m cable
Note: General lab and field use pH electrodes.
  • Difference between 88-IP is 88-IIP is only the color.
  • 88-IA has sharp tip



Model
89-I
Measuring Range
0 - 14 pH
Temperature Range
0 - 60 C
Zero point value
7 +/- 1 pH
Junction
Ceramic
Reference Cell
Ag/Agcl, KCL gel
Size
dia.12 x length 170 mm
Plug
BNC
Note: With direct BNC plug for general lab and field use.
PH Combined Electrode with Plastic Body(double layer)

Model
99-I
99-IA
Measuring Range
0 - 14 pH
Temperature Range
0 - 60 C
Zero point value
7 +/- 1 pH
Junction
Fiber
Reference Cell
Ag/Agcl, KCL gel
Ag/Agcl, KCL gel (tine vesicle)
Size
dia.12 x length 160 mm
Plug
BNC + 1 m cable
Note: Double layer electrodes. Suitable for continous measurement. 99-IA is with sharp tip.
PH Combined Electrode with Plastic Body

Model
PS-02
Measuring Range
0 - 14 pH
Temperature Range
0 - 60 C
Zero point value
7 +/- 1 pH
Junction
Ceramic
Reference Cell
Ag/Agcl, KCL gel
Size
dia.12 x length 90 mm
Plug
BNC + 1 m cable
Note: Can be used for measuring skin, sheet, wood and etc.
PH Combined Electrode with Plastic Body (with temperature sensor)

Model
PE-200
Measuring Range
0 - 14 pH
Temperature Range
0 - 60 C
Zero point value
7 +/- 1 pH
Junction
Ceramic
Reference Cell
Ag/Agcl, KCL gel
Size
dia.12 x length 160 mm
Plug
BNC + 1 m cable + temp. sensor plug
Note: With temperature sensor, can be used with pH meters with ATC (Automatic Temperature Compensation) function.
