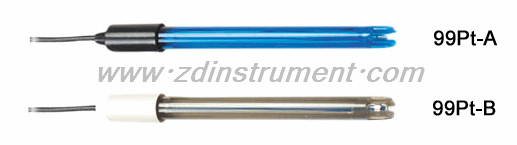

ORP Combined Electrode with Plastic Body

Model
99Pt-A
99Pt-B
Measuring Range
+/- 1500 mV
Junction
Ceramic
Reference Cell
Ag/Agcl, KCL gel
Sensitive Component
dia.1 x 6mm Platinum needle
dia.6 x 2.5mm Platinum ring
Size
dia.12 x length 160 mm
Plug
BNC + 1 m cable
Note: Difference between the two models is the shape of the sensitive component. A is needle and B is ring.
Conductivity Electrode with Glass Body

Model
DJS-1
Sensitive Component
5 x 5 mm platinum plate (coated black)
Size
dia.12 x length 140 mm
Cell Constant
1
Plug
BNC + 1 m cable

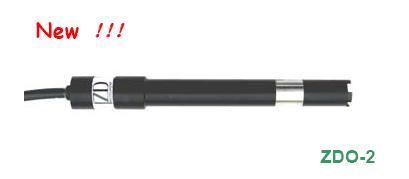

Dissolved Oxygen Electrode with Plastic Body



Model
ZDO-1
ZDO-2 New!
Residue current
=< 0.005 uA
Response time
30 seconds for 90% 25C)
15 seconds for 90% 25C)
Measuring range
0 - 20 ppm ( 0-20 mg/l )
Stability
+/- 0.2 ppm when ambient temperature varies +/- 10 C
Temp.Compensation
10K or 30K NTC
Pt
Temp.Measuring
10K or 30K NTC
Pt
